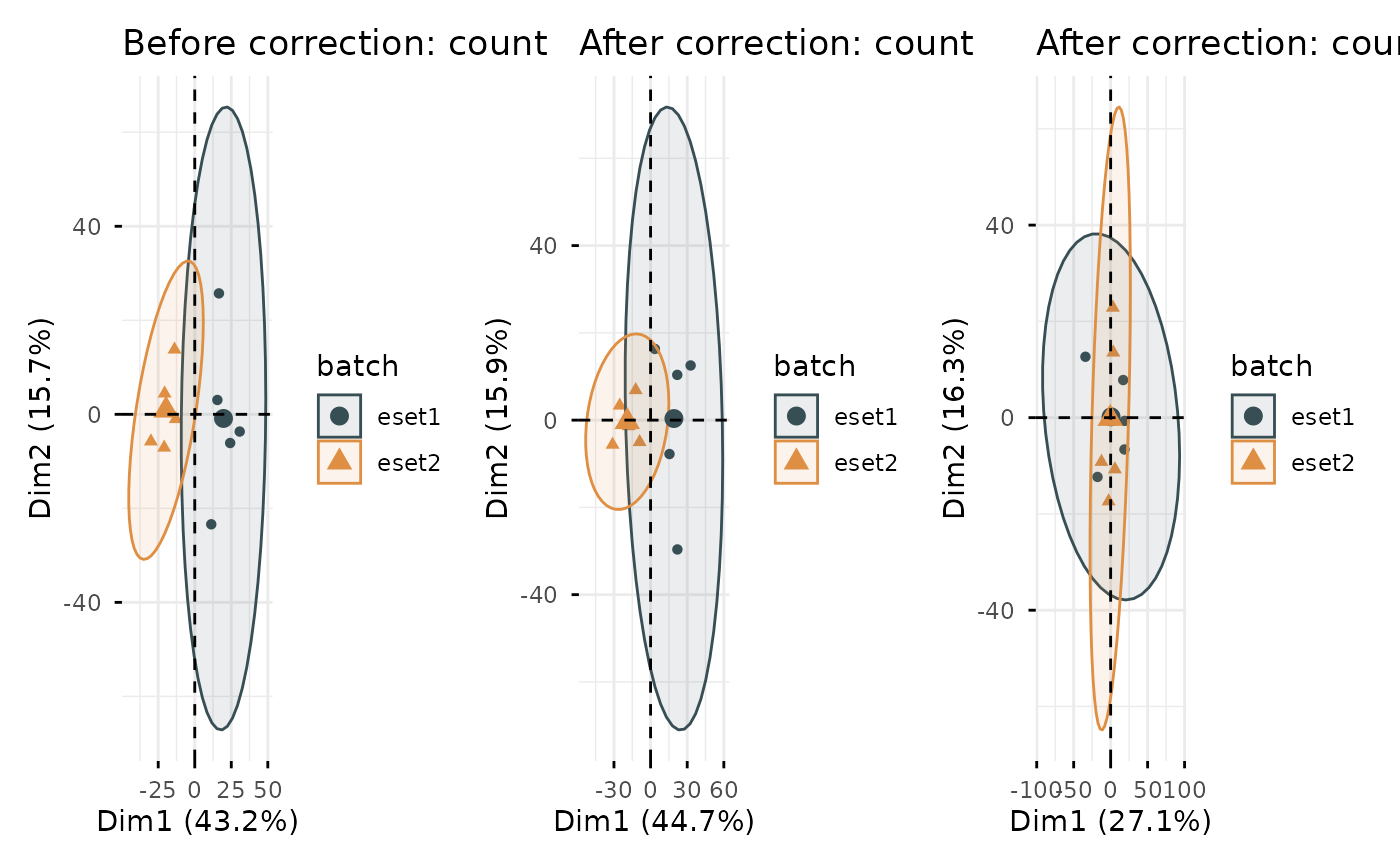

Removes batch effects from expression datasets using sva::ComBat (for microarray/TPM data) or sva::ComBat_seq (for RNA-seq count data). Generates PCA plots to visualize data before and after correction.
Usage
remove_batcheffect(
eset1,
eset2,
eset3 = NULL,
id_type = "ensembl",
data_type = c("array", "count", "tpm"),
cols = "normal",
palette = "jama",
log2 = TRUE,
check_eset = TRUE,
adjust_eset = TRUE,
repel = FALSE,
path = NULL
)Arguments
- eset1
First expression set (matrix or data frame with genes as rows).
- eset2
Second expression set.
- eset3
Optional third expression set. Use `NULL` if not available.
- id_type
Type of gene ID in expression sets (e.g., `"ensembl"`, `"symbol"`). Required for count data normalization.
- data_type
Type of data: `"array"`, `"count"`, or `"tpm"`. Default is `"array"`.
- cols
Color scale for PCA plot. Default is `"normal"`.
- palette
Color palette for PCA plot. Default is `"jama"`.
- log2
Whether to perform log2 transformation. Default is `TRUE`. Ignored for count data.
- check_eset
Whether to check expression sets for errors. Default is `TRUE`.
- adjust_eset
Whether to adjust expression sets by removing problematic features. Default is `TRUE`.
- repel
Whether to add repelling labels to PCA plot. Default is `FALSE`.
- path
Directory where results should be saved. Default is `NULL` (display only).
References
Zhang Y, et al. ComBat-seq: batch effect adjustment for RNA-seq count data. NAR Genomics and Bioinformatics. 2020;2(3):lqaa078. doi:10.1093/nargab/lqaa078
Leek JT, et al. The sva package for removing batch effects and other unwanted variation in high-throughput experiments. Bioinformatics. 2012;28(6):882-883.
Examples
# Simulate data
set.seed(123)
sim_eset1 <- matrix(rnorm(100 * 5, mean = 10, sd = 2), 100, 5)
sim_eset2 <- matrix(rnorm(100 * 5, mean = 12, sd = 2), 100, 5)
rownames(sim_eset1) <- rownames(sim_eset2) <- paste0("Gene", 1:100)
colnames(sim_eset1) <- paste0("S1_", 1:5)
colnames(sim_eset2) <- paste0("S2_", 1:5)
# Run batch correction
if (requireNamespace("sva", quietly = TRUE) && requireNamespace("BiocParallel", quietly = TRUE)) {
eset_corrected <- remove_batcheffect(sim_eset1, sim_eset2, data_type = "tpm")
if (!is.null(eset_corrected)) head(eset_corrected)
}
#> ℹ Log2 transformation not necessary (data appears to already be log-scaled)
#> ℹ Log2 transformation not necessary (data appears to already be log-scaled)
#> ℹ The two expression matrices share 100 features
#> ℹ Processing method: sva::ComBat
#> Found2batches
#> Adjusting for0covariate(s) or covariate level(s)
#> Standardizing Data across genes
#> Fitting L/S model and finding priors
#> Finding parametric adjustments
#> Adjusting the Data
#> ℹ Log2 transformation not necessary (data appears to already be log-scaled)
#>
#> eset1 eset2
#> 5 5
#> >>== colors for group:
#> >>== #374E55FF>>== #DF8F44FF
#> ℹ Log2 transformation not necessary (data appears to already be log-scaled)
#>
#> eset1 eset2
#> 5 5
#> >>== colors for group:
#> >>== #374E55FF>>== #DF8F44FF
#> S1_1 S1_2 S1_3 S1_4 S1_5 S2_1 S2_2
#> Gene1 9.792976 9.944992 14.91214 9.895600 10.695508 10.109164 13.361392
#> Gene2 9.976222 11.449648 12.48123 9.522742 8.426746 9.566679 11.449648
#> Gene3 14.048781 11.021545 10.59517 9.683681 9.629662 12.978768 10.960286
#> Gene4 11.418995 10.960286 12.22496 9.456422 10.960286 12.224961 8.749894
#> Gene5 11.275189 9.350557 10.10916 10.238317 12.145525 8.260313 12.317743
#> Gene6 13.906184 11.275189 10.00584 11.545079 8.123103 10.730401 10.831304
#> S2_3 S2_4 S2_5
#> Gene1 9.566679 11.54508 9.236308
#> Gene2 8.577297 10.10916 9.976222
#> Gene3 9.456422 12.14552 11.578457
#> Gene4 10.653537 12.59930 13.558965
#> Gene5 8.849318 11.36695 12.820878
#> Gene6 12.145525 11.27519 9.944992
