Generates a heatmap of selected features grouped by a categorical variable, with optional conditional (annotation) bars. Supports palette customization, scaling, size controls, and output saving.
Usage
sig_heatmap(
input,
id = "ID",
features,
group,
condition = NULL,
id_condition = "vars",
col_condition = "condition",
cols_condition = NULL,
scale = FALSE,
palette = 2,
cols_heatmap = NULL,
palette_group = "jama",
show_col = FALSE,
show_palettes = FALSE,
cols_group = NULL,
show_plot = TRUE,
width = 8,
height = NULL,
size_col = 10,
size_row = 8,
angle_col = 90,
column_title = NULL,
row_title = NULL,
show_heatmap_col_name = FALSE,
path = NULL,
index = NULL
)Arguments
- input
Data frame containing ID, grouping variable, and feature columns.
- id
Character string. Column name for sample identifier. Default is `"ID"`.
- features
Character vector. Feature (column) names to include in the heatmap.
- group
Character string. Grouping variable column name.
- condition
Data frame or `NULL`. Optional annotation table with variable-condition mapping. Default is `NULL`.
- id_condition
Character string. Column name in `condition` for feature IDs. Default is `"vars"`.
- col_condition
Character string. Column name in `condition` for condition labels. Default is `"condition"`.
- cols_condition
Character vector. Colors for conditions.
- scale
Logical indicating whether to scale values by row. Default is `FALSE`.
- palette
Integer or character. Palette index/name for heatmap colors. Default is `2`.
- cols_heatmap
Character vector. Custom colors for heatmap gradient.
- palette_group
Character string. Palette name for group colors. Default is `"jama"`.
- show_col
Logical indicating whether to display the color vector. Default is `FALSE`.
- show_palettes
Logical indicating whether to print palette options. Default is `FALSE`.
- cols_group
Character vector. Custom colors for groups.
- show_plot
Logical indicating whether to print the heatmap. Default is `TRUE`.
- width
Numeric. Plot width in inches. Default is `8`.
- height
Numeric or `NULL`. Plot height in inches. Auto-calculated if `NULL`.
- size_col
Numeric. Font size for column labels. Default is `10`.
- size_row
Numeric. Font size for row labels. Default is `8`.
- angle_col
Numeric. Rotation angle for column labels in degrees. Default is `90`.
- column_title
Character string or `NULL`. Title for column annotation.
- row_title
Character string or `NULL`. Title for row annotation.
- show_heatmap_col_name
Logical indicating whether to show column names. Default is `FALSE`.
- path
Character string or `NULL`. Output directory for saving the heatmap.
- index
Integer or `NULL`. Index appended to filename. Default is `NULL`.
Examples
# \donttest{
tcga_stad_sig <- load_data("tcga_stad_sig")
tcga_stad_pdata <- load_data("tcga_stad_pdata")
input <- merge(tcga_stad_pdata, tcga_stad_sig, by = "ID")
feas <- grep("MCPcounter", colnames(input), value = TRUE)

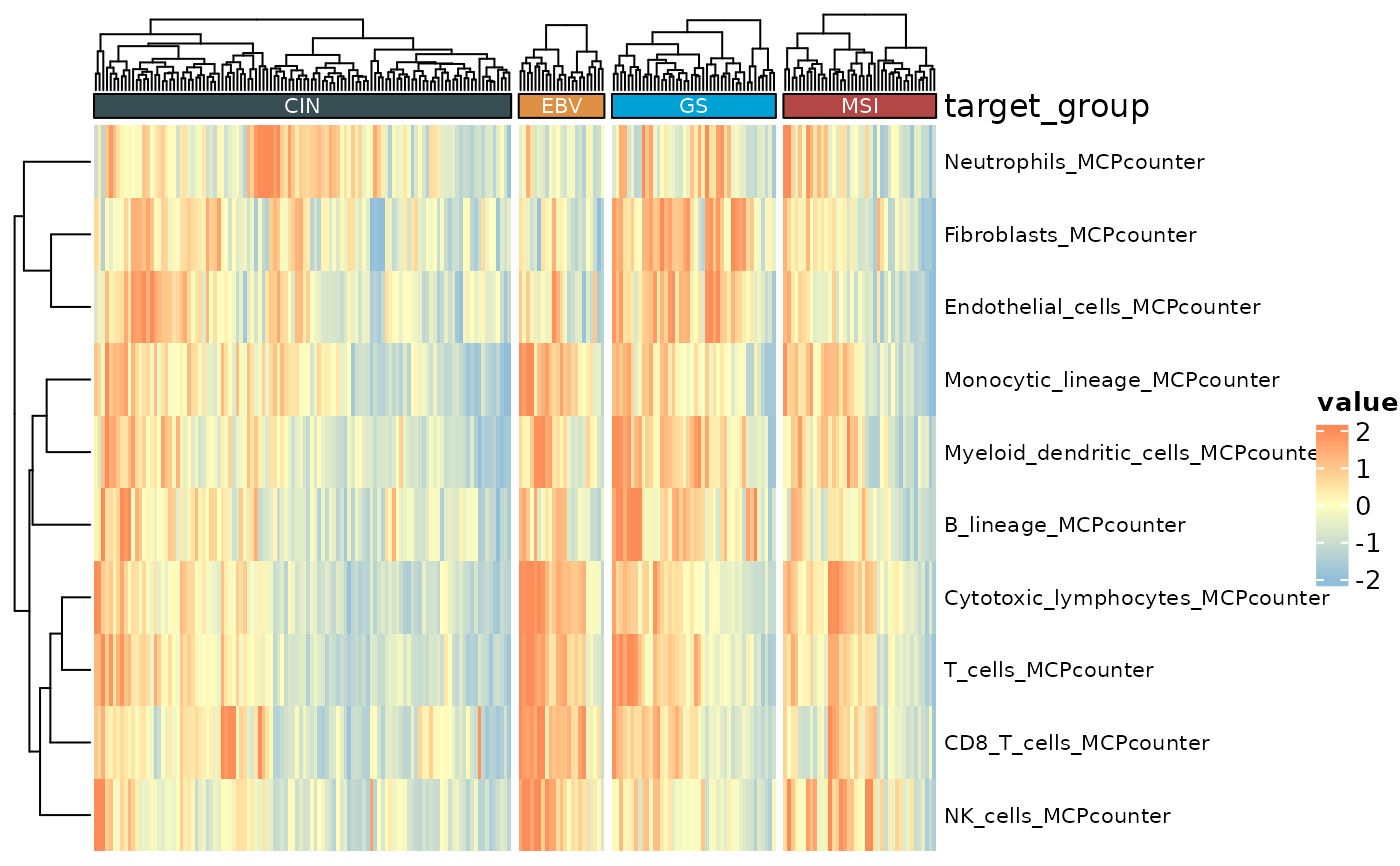

sig_heatmap(input = input, features = feas, group = "subtype", scale = TRUE)
#> ℹ Creating heatmap with 10 features
# }
